Sine, Cosine & Tangent Help

SOH - CAH - TOA

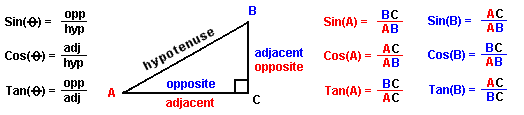

The three basic trig functions shown in the diagram below can be used to solve any right triangle if you are given two sides or one side and one of the acute angles.

Since the sum of the interior angles is 180°, if you are given one of the angles of a right triangle, you can always find the third angle by subtracting the known angle from 90°.

Note that Sin(A)= Cos(B), Cos(A)= Sin(B) and the Tan(A) is the reciprocal of Tan(B). This is true because the side opposite ∠ A is adjacent to ∠ B and the side adjacent ∠ A is opposite to ∠ B.

If any of the trig ratios are known, the related angle can be found using inverse trig functions; eg. ∠ A = Sin^-1(BC/AB) = Cos^-1(AC/AB) = Tan^-1(BC/AC) in the figure above.
